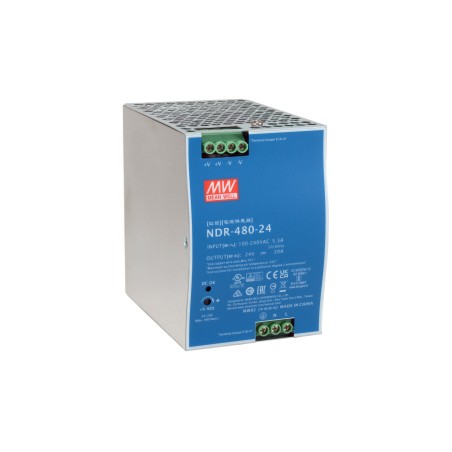

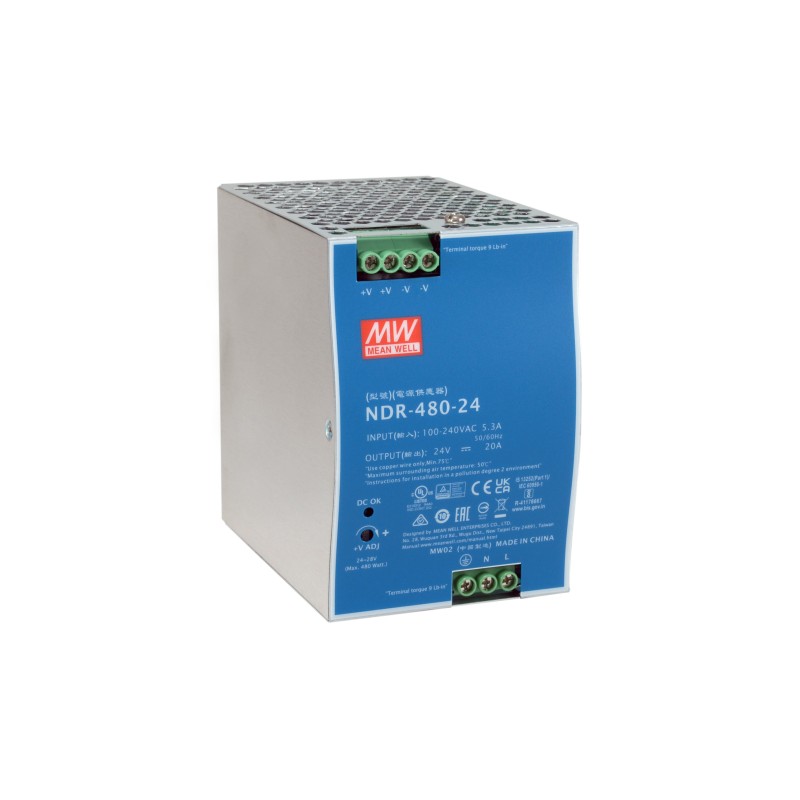

LevelOne 24V DC Industrie-Netzteil, 480W, DIN-Schiene,-20 ~ +70 ℃
  • LevelOne 24V DC Industrie-Netzteil, 480W, DIN-Schiene,-20 ~ +70 ℃

LevelOne 24V DC Industrie-Netzteil, 480W, DIN-Schiene,-20 ~ +70 ℃

B7ABAE95

LevelOne 24V DC Industrie-Netzteil, 480W, DIN-Schiene,-20 ~ +70 ℃, 480 W, 90 - 264 V, 47 - 63 Hz, 4.8 A, 16 ms, Überlastschutz, Überspannung, Kurzschluß

247,00 €
Bruttopreis
Menge
Articolo in magazzino

NB. Per richiesta fattura compilare i campi Partita IVA o CODICE FISCALE presenti in fase di conferma ordine.

Order it before 10 Stunden und 57 Minuten and receive it between 26.11.26 and 01.12.26 with HM

Beschreibung
LevelOne 24V DC Industrie-Netzteil, 480W, DIN-Schiene,-20 ~ +70 ℃. Gesamtleistung: 480 W, AC Eingangsspannung: 90 - 264 V, AC Eingangsfrequenz: 47 - 63 Hz. Mittlere Betriebsdauer zwischen Ausfällen (MTBF): 1041600 h. Produktfarbe: Blau, Silber. Sicherheit: EN 55032 (CISPR32) Class A EN 61000-3-2,-3,EACTPTC020,CNS13438 Class A EN 61000-4-2,3,4,5,6,8,11.... Breite: 85,5 mm, Tiefe: 128,5 mm, Höhe: 125,2 mm
Gesamtleistung480 W
AC Eingangsspannung90 - 264 V
AC Eingangsfrequenz47 - 63 Hz
Eingangsstrom4.8 A
Haltezeit16 ms
EnergieschutzeigenschaftenÜberlastschutz, Überspannung, Kurzschluß
Mittlere Betriebsdauer zwischen Ausfällen (MTBF)1041600 h
ProduktfarbeBlau, Silber
Anzahl Lüfter0 Lüfter
Betriebstemperatur-20 - 70 °C
Temperaturbereich bei Lagerung-40 - 85 °C
Relative Luftfeuchtigkeit in Betrieb10 - 95%
Luftfeuchtigkeit bei Lagerung10 - 95%
SicherheitEN 55032 (CISPR32) Class A EN 61000-3-2,-3,EACTPTC020,CNS13438 Class A EN 61000-4-2,3,4,5,6,8,11 EN 61204-3 EN 55035 EN 61000-6-2 (EN 50082-2)
Breite85,5 mm
Tiefe128,5 mm
Höhe125,2 mm
Gewicht1,42 kg
Verpackungsbreite122 mm
Verpackungstiefe171 mm
Verpackungshöhe150 mm
Paketgewicht1,5 kg
VerpackungsartBox
Anzahl Kartons pro Palette20 Stück(e)
Breite des Versandkartons266 mm
Länge des Versandkartons361 mm
Höhe des Versandkartons323 mm
Gewicht Versandkarton11,4 kg
Warentarifnummer (HS)8504403090
UrsprungslandChina
Spannungstoleranz1%
Ausgang Spannung (Note)24
Artikeldetails
LevelOne
B7ABAE95
2 Artikel

Besondere Bestellnummern

ean13
4015867236581
